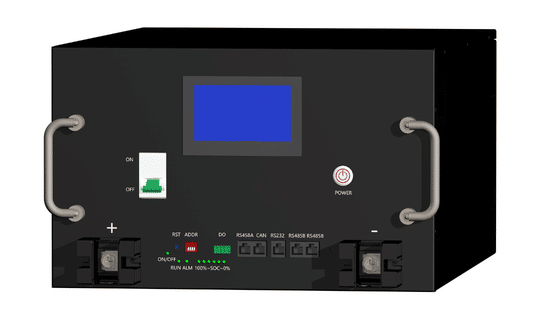

51.2V 200Ah Lithium Battery | 10.2kWh Rackable LiFePO4 Energy Storage

The 51.2V 200Ah LiFePO4 rack battery delivers 10.24kWh of reliable, deep-cycle energy storage in a compact, stackable form factor. Engineered for residential solar applications, it ships IEC62619-certified with full BMS protection and supports up to 15 units in parallel — ideal for solar installers, EPCs, and battery distributors seeking a proven, private-label-ready solution from a verified OEM manufacturer in China.

Home » Products » Low Voltage Batteries » LV Rackable 51.2V 200Ah Lithium Battery

Why Choose a 51.2V 100Ah LiFePO4 Lithium Battery Platform?

Product Overview

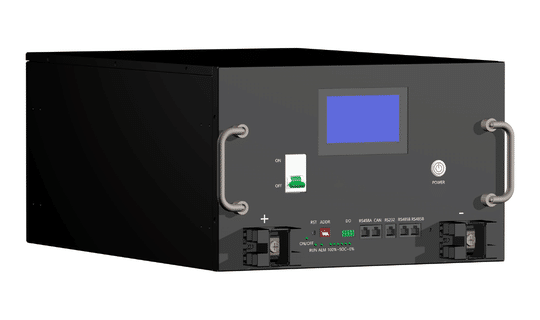

Our scalable 51.2V LiFePO4 platform — from 100Ah to 314Ah — adapts to any residential solar project size.

Lithium Iron Phosphate Chemistry Built for Longevity

LiFePO4 chemistry offers an unmatched combination of thermal stability, cycle life, and safety. Unlike NMC-based alternatives, this lithium iron phosphate battery pack delivers ≥6,000 charge cycles at 90% DOD with zero thermal runaway risk — meaning lower lifetime cost of ownership and higher installer confidence in the field.

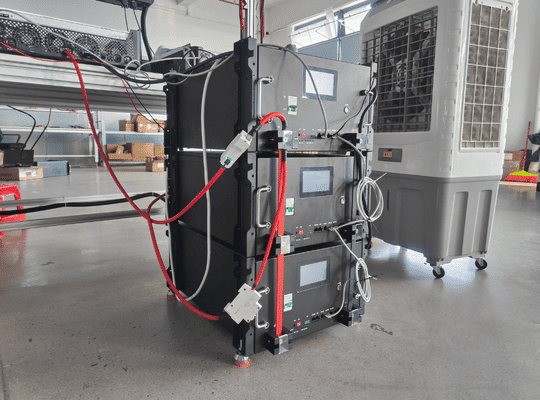

Scalable 48V Architecture for Any System Size

Built on a true 48V LiFePO4 battery architecture (nominal 51.2V), a single unit stores 10.24kWh of usable energy. Connect up to 15 units in parallel to build systems up to 153.6kWh — giving EPCs the flexibility to right-size every residential project without sourcing multiple SKUs.

Solar Battery Storage System Features That Installers Trust

Key Features

Designed for real-world solar installs — rack-mountable, inverter-compatible, and built to perform in demanding conditions.

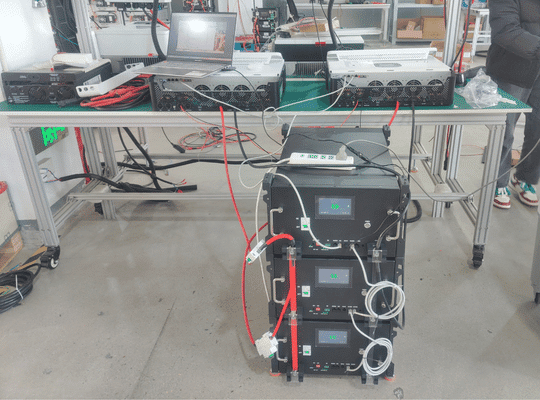

Intelligent Battery Management System (BMS)

The integrated BMS provides multi-layer active protection across overcharge, over-discharge, overcurrent, short circuit, and temperature extremes. Cell balancing, SOC/SOH monitoring, and fault diagnostics are communicated in real time via CAN, RS485, and RS232 — giving installers full visibility and reducing after-sales support calls.

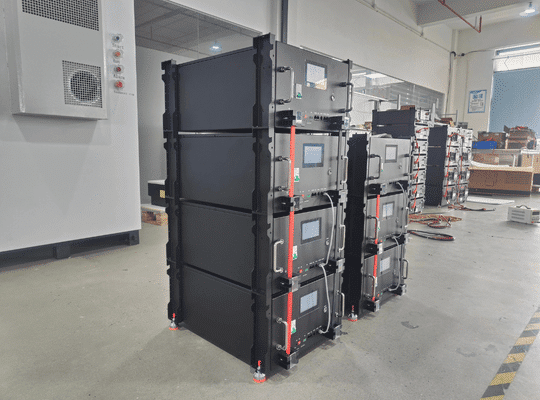

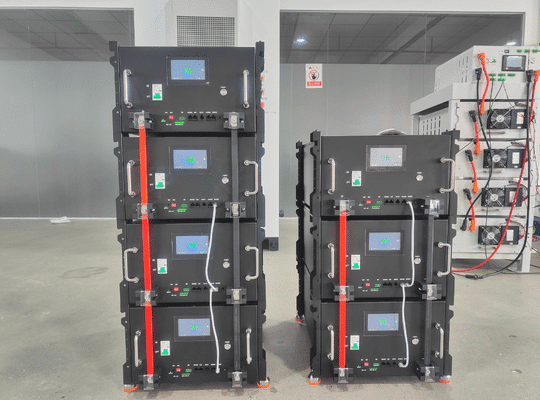

Stackable 51.2V 200Ah LiFePO4 rack battery modules connected in parallel — up to 15 units

Stackable Rack Module — Up to 15 Units in Parallel

The standardized 19-inch rack-compatible form factor (605×383×240mm, 77kg) installs cleanly into server cabinets or purpose-built enclosures. The stackable battery module design eliminates custom racking costs and cuts on-site installation time significantly compared to traditional flat-pack or floor-standing alternatives.

Deep cycle LiFePO4 lithium battery operating in wide temperature range from -20°C to 60°C

Deep Cycle Performance Across a Wide Temperature Range

Rated for discharge from -20°C to +60°C and charging from 0°C to +60°C, this deep cycle lithium battery performs reliably in garages, utility rooms, and unconditioned spaces across climate zones — from hot Australian summers to cold Central European winters.

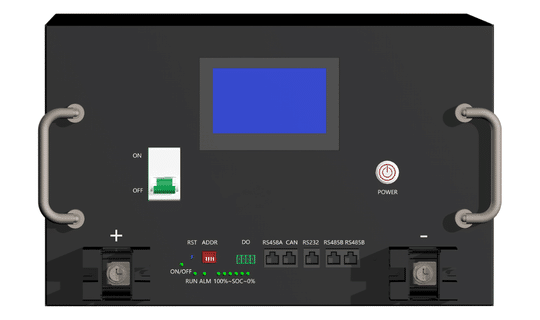

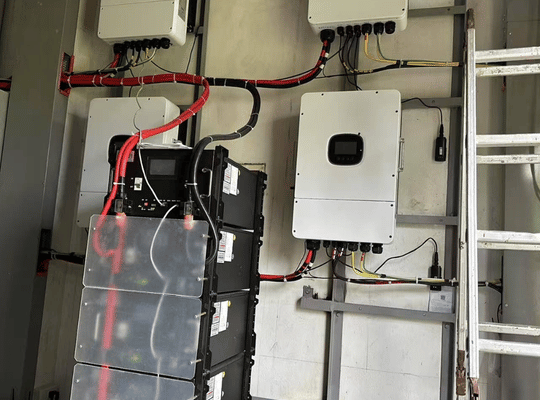

Built-in DC isolation switch on 200Ah lithium battery pack for safe manual disconnection

Built-In Safety Isolation Switch

Each unit ships with an integrated DC isolation switch, allowing safe manual disconnection during maintenance, commissioning, or emergency shutdown without requiring additional external components or added BoS cost.

48V LiFePO4 Battery Full Technical Specifications

Technical Specifications

Every specification below is verified against IEC62619 test reports and factory QC data from Xiamen Rakour.

IEC62619 Certified

≥6,000 Cycles

5-Year Warranty

Max 15 Units Parallel

Parameter	Specification	Notes
Model	51.2V200Ah-LV	Low Voltage Rackable Series
Battery Chemistry	LiFePO4	Lithium Iron Phosphate — zero thermal runaway
Nominal Voltage	51.2V	Operating range: 46.4V – 57.6V
Nominal Capacity	200Ah	48V LiFePO4 battery standard platform
Total Energy	10,240Wh (10.24kWh)	Usable @ 90% DOD: 9,216Wh (9.22kWh)
Max Charge / Discharge Current	120A / 120A	Recommended continuous: 80A
Cycle Life	≥ 6,000 cycles	@ 90% DOD, 25°C — approx. 16+ years daily use
Communication Ports	CAN / RS485 / RS232	Deye inverter compatible via CAN BMS protocol
Dimensions (W × D × H)	383 × 605 × 240 mm	19-inch rack compatible form factor
Operating Temperature	-20°C to +60°C	Charge: 0°C to +60°C / Discharge: -20°C to +60°C
Max Parallel Units	15 pcs	Max system energy: 153.6kWh per string
Certifications	CE · RoHS · IEC62619 · MSDS · UN38.3	IEC62619 cell-level & system-level certified

Solar Energy Storage System Applications

Applications

From single-family homes to multi-unit residential projects, this battery fits the most common solar-plus-storage scenarios.

Residential Solar Self-Consumption

Maximize solar self-consumption by storing excess daytime PV generation and discharging during evening peak demand. A single 10.24kWh unit covers average nightly household loads; stacking 2–4 units supports zero-export and off-grid-capable designs.

200Ah lithium battery providing home backup power and grid resilience for solar energy storage

Backup Power & Grid Resilience

Provide whole-home backup during grid outages. The high continuous discharge current (up to 120A) and intelligent BMS ensure seamless transition to backup mode — protecting sensitive appliances, home offices, and medical equipment without inverter overload.

48V LiFePO4 deep cycle battery installed in off-grid hybrid solar energy storage system

Off-Grid & Hybrid Solar Installations

Ideal for remote properties, rural electrification, and hybrid solar systems where grid reliability is limited. The wide operating temperature range and high cycle life make this the preferred deep cycle lithium battery choice for off-grid EPCs and project developers.

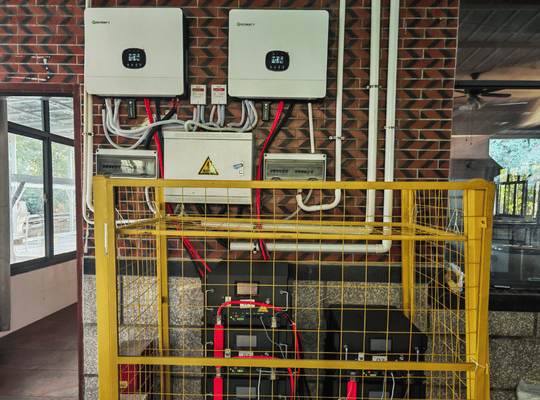

Deye Inverter Compatible — Plug-and-Play Integration

Compatible Inverters

Pre-validated with Deye hybrid inverters via CAN BMS protocol — no manual parameter configuration required on-site.

Deye SUN Series (5kW–80kW)

Fully tested and documented for plug-and-play integration with Deye SUN-29.9K~50KSG01HP3 and SUN-80K-SG02HP3-EU-EM6 inverters. Connect via CAN to the inverter BMS port; the battery main module auto-negotiates SOC, charge limits, and protection thresholds. For single-module installs on Deye 29.9K–50K inverters, use the dual-port parallel shunt configuration (P1+/P1– → BAT1; P2+/P2– → BAT2) to maximize power delivery.

Broad Third-Party Inverter Compatibility

Beyond Deye, the CAN/RS485/RS232 multi-protocol BMS supports integration with most leading hybrid inverter brands. Contact our technical team for a validated compatibility list covering SolarEdge, Growatt, Sungrow, Victron Energy, Fronius, and GoodWe.

View Our Compatibility List

IEC62619 Certified Battery — Fully Compliant for Global Markets

Certifications & Compliance

Ship into the EU, Australia, and beyond with confidence — our certifications cover safety, transport, and material compliance.

🛡️ Safety & Performance

IEC 62619

International Safety Standard

Covers safety requirements for stationary lithium-ion battery systems. Certified at both cell level and system level — the most critical compliance requirement for residential solar storage installations globally.

Report No. CCJC20241397901 Cell + System Level

CE Marking

EU Declaration of Conformity

Confirms the product meets EU health, safety, and environmental protection standards. Includes EMC (Electromagnetic Compatibility) compliance — mandatory for all residential energy storage products sold within the European Economic Area.

EU / EEA Markets Includes EMC

RoHS

Restriction of Hazardous Substances

Confirms the battery pack is free from restricted hazardous substances including lead, mercury, cadmium, hexavalent chromium, and brominated flame retardants — required for product sales across EU, UK, and many Asian markets.

EU / UK / Asia Hazardous-Free

🚢 Transport Compliance

UN 38.3

Transport Testing — Lithium Batteries

Mandated UN certification for the safe transport of lithium batteries by air, sea, and road. Covers altitude simulation, thermal testing, vibration, shock, external short circuit, overcharge, and forced discharge tests.

Air / Sea / Road Global Freight Ready

By-Sea Certificate

Ocean Freight Compliance

Dedicated ocean freight compliance documentation issued for the 51.2V 200Ah LiFePO4 battery pack. Enables smooth customs clearance and carrier acceptance for container shipping to international distributors and project sites.

Container Shipping Customs Ready

🧪 Material Safety

MSDS

Material Safety Data Sheet

Comprehensive material safety documentation covering chemical composition (LiFePO4, graphite, LiPF6, copper foil), handling procedures, storage requirements, emergency response, and disposal guidelines. Issued by Rakour Energy, Xiamen, China.

51.2V / 200Ah / 10,240Wh All Markets

LiFePO4 Battery 12V 200Ah Price-Competitive OEM Battery Manufacturer China

OEM & ODM Support

We supply private-label LiFePO4 batteries to distributors and brands in 30+ countries — with factory-direct pricing.

Private Label & Custom Branding

Launch your own branded energy storage product line without building a factory. We support custom shell color, laser-engraved logos, branded BMS display screens, and fully customized user manuals and packaging — with MOQ as low as 20 units for initial pilot orders.

ODM Engineering Support

Need a non-standard voltage, capacity, or form factor? Our R&D team supports full ODM development from concept to certified product. We handle cell selection, BMS firmware development, structural design, and international certification — delivering production-ready designs in 60–90 days.

Supply Chain & Logistics

As a direct OEM battery manufacturer based in Xiamen, China, we offer transparent factory pricing, consolidated container loading for mixed SKU orders, and dedicated export documentation support including Form E (RCEP), CO, and all transport certifications.

Frequently Asked Questions About Our 200Ah Lithium Battery

Quick answers to the questions solar installers and distributors ask us most before placing their first order.

What is the usable energy of this 200Ah lithium battery at 90% DOD?

At the recommended 90% depth of discharge, the 51.2V 200Ah unit delivers 9,216Wh (9.22kWh) of usable energy per cycle. This is the figure to use when sizing residential solar-plus-storage systems, not the nominal 10.24kWh total capacity.

How many units can I connect in parallel?

Up to 15 units can be connected in parallel, scaling total system energy to a maximum of 153.6kWh from a single battery string. All units communicate through a shared CAN/RS485 bus managed by the master BMS module.

Is this battery compatible with Deye inverters out of the box?

Yes. The 51.2V 200Ah-LV has been tested and documented with Deye SUN series hybrid inverters (5kW–80kW range). Communication is established via CAN bus connected to the inverter's BMS port. Detailed wiring diagrams and inverter parameter settings are included in the installation guide.

What certifications does this battery hold?

The 51.2V 200Ah-LV holds CE, RoHS, IEC62619, MSDS, and UN38.3 certifications. The IEC62619 certificate covers both cell-level and system-level safety testing, making it compliant for residential installation in the EU, UK, Australia, and most international markets.

Can I order with my own brand name and packaging?

Yes. We offer full OEM private label services including custom branding, enclosure colors, BMS display graphics, and multilingual documentation. Minimum order quantities start at 20 units. Contact our OEM team to request a sample and discuss your project timeline.

What is the expected cycle life and warranty?

The 51.2V 200Ah-LV is rated for ≥6,000 cycles at 90% DOD under standard conditions — equivalent to over 16 years of daily cycling. The product comes with a 5-year manufacturer's warranty covering capacity retention and defects under normal use conditions.
