High Voltage Battery 51.2V 314Ah LiFePO4 | C&I Energy Storage for Solar Installers & EPCs
Power your commercial projects with a factory-direct, private-label-ready 51.2V 314Ah LiFePO4 high voltage battery. Engineered for solar integrators, EPCs, and distributors who demand certified performance, scalable capacity, and full OEM flexibility — shipped direct from our Xiamen manufacturing facility.
Scalable Battery Energy Storage System Built for Commercial Demand
Product Overview
The 51.2V 314Ah module delivers 16kWh of usable capacity per unit, supporting up to 15 stackable units in parallel for large-scale commercial energy storage deployments across industrial, commercial, and solar applications.

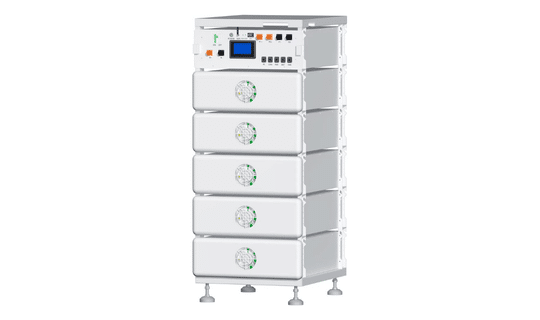

System Architecture — Modular High Voltage Battery Design
Dual-Layer BMS Architecture for Intelligent Cell Management
Integrated LiFePO4 Battery Management System for Maximum Safety
Key Features
Every unit ships with a built-in multi-layer BMS battery that monitors cell balancing, over-temperature, over-voltage, and short-circuit protection — ensuring long cycle life across 6,000+ charge cycles at 80% DoD.

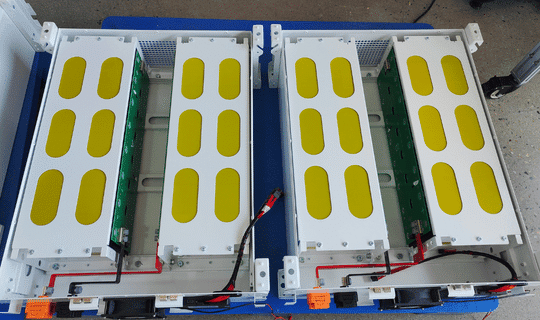

Grade-A LiFePO4 Cells with ≥8,000 Cycle Life at 90% DoD
The RAKOUR NSTFW-16K-HV is built on Grade-A LiFePO4 cells configured in a 16S1P architecture per battery module. Rated at ≥8,000 cycles at 90% DoD, each 314Ah module delivers 16.08kWh of dependable capacity — significantly reducing total cost of ownership for long-duration commercial energy storage deployments.

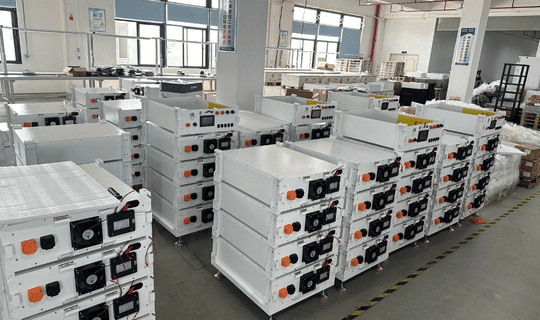

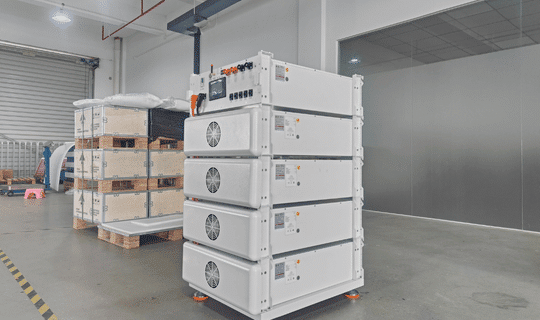

Dual-Layer BMS Battery with Multi-Level Fault Protection
The integrated LiFePO4 battery management system operates on two levels: a slave BMS within each stackable battery module and a master BMS inside the BCU. The BMS battery monitors cell voltage, current, and temperature in real time, with active protection against overcharge, over-discharge, over-current, and high/low temperature events — ensuring autonomous, fail-safe operation across the full energy storage system.

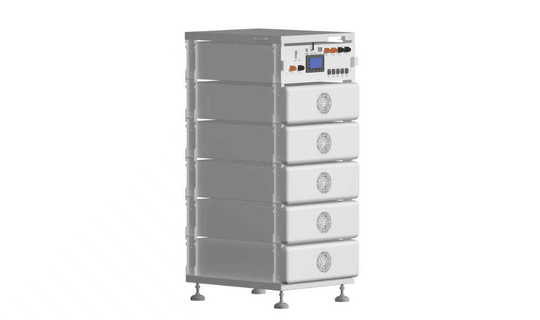

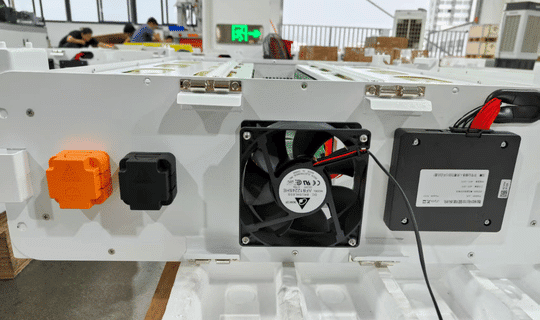

Active Fan Cooling, Soft-Start Circuit & On-Board Display

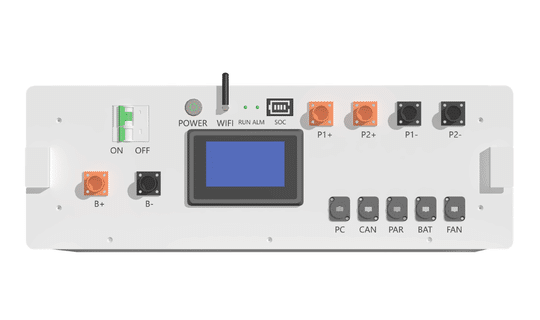

Each battery module is equipped with an active cooling fan to manage thermal load during high-current operation. A built-in soft-start circuit enables compatibility with high voltage inverters that lack native soft-start functionality. The BCU integrates a touch screen display for real-time SOC, alarm status, and system parameter monitoring at the installation site.
Full Technical Specifications — High Voltage Battery Module
Technical Specifications
All electrical parameters are factory-verified and third-party certified. Each battery module is tested before shipment to ensure compliance with rated capacity, internal resistance, and BMS response thresholds.
RAKOUR NSTFW-16K-HV | 51.2V 314Ah LiFePO4 Battery Module Specifications

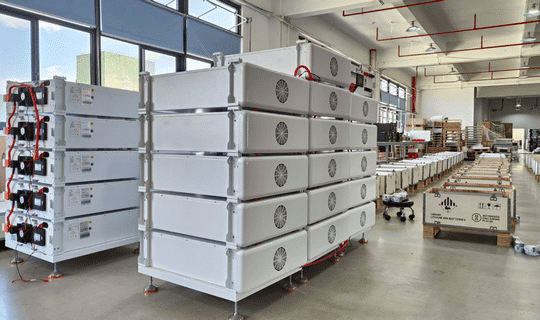

The RAKOUR NSTFW-16K-HV battery module is engineered around Grade-A LiFePO4 cells, delivering 16.08kWh per unit at a nominal 51.2V. When configured as a complete commercial energy storage system, 5 to 14 modules connect in series through the BCU, scaling system voltage from 256V to 716.8V to match a broad range of high voltage inverter platforms. With a maximum continuous current of 200A, active fan cooling, and CAN/RS485 communication, every battery module is factory-verified for performance and shipped CE, MSDS, and UN38.3 certified — ready for direct integration into C&I solar energy storage projects.
NSTFW-16K-HV Specification Table — Module & System Parameters
| RAKOUR NSTFW-16K-HV — 51.2V 314Ah Module & System Specifications | |||
|---|---|---|---|
| Parameter | Module Value | System Range | Notes |
| Electrical Parameters | |||
| Cell Chemistry | LiFePO4 | LiFePO4 | Grade-A cells · 16S1P per module |
| Nominal Capacity | 314 Ah | Per module | 16.08 kWh usable energy per rack unit |
| Module Energy | 16.08 kWh | 80.38 – 225.08 kWh 5–14 modules | Usable at 90% DoD |
| Nominal Voltage | 51.2 V | 256 – 716.8 V 5–14 modules in series | BCU manages series connection |
| Charge / Discharge Current | Rec: 160 A Max: 200 A | Per inverter specification | Parallel shunt recommended for 80kW inverters |
| Cycle Life | ≥ 8,000 cycles | @ 90% DoD | 5+5 year warranty backed |
| Thermal Parameters | |||
| Working Temperature | −10°C ~ 55°C Discharge range | 0°C ~ 55°C Charge range | Active fan cooling per module |
| Cooling Mode | Active Fan | Per battery module | Triggers automatically on thermal load |
| Storage Temperature | 0°C ~ 35°C | Recommended | Indoor installation required |
| Mechanical Parameters | |||

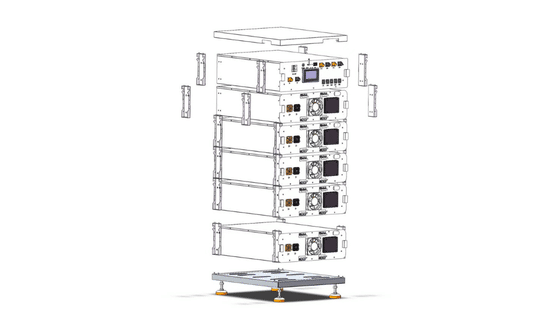

| Module Dimensions | 771 × 550 × 200 W × D × H (mm) | Per module | Stack or iron frame mounting |
| Module Weight | ~118 kg | Per module approx. | Structural floor loading required |
| Communication | CAN RS485 | BCU to inverter | Internal CAN between modules and BCU |
| Compliance & Environmental | |||
| Certifications |
🇪🇺 CE
✅ UN38.3
🧪 MSDS | Third-party verified · export-ready | |
| IP Rating | IP20 | Indoor installation | Controlled environment required |
| Operating Altitude | ≤ 2,000 m | Above sea level | UN38.3 altitude simulation passed |
| Humidity | 5% ~ 95% RH | Non-condensing | Working & storage condition |

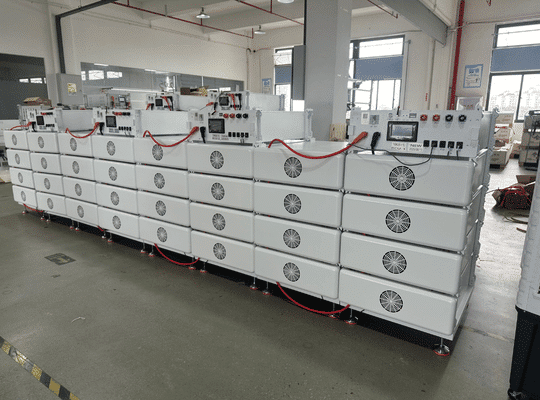

Rack Mount Battery Backup for Solar, Commercial & Industrial Sites
Applications
Designed for demanding real-world environments, this rack mount battery backup solution is ideal for solar self-consumption, peak shaving, off-grid backup, and time-of-use optimization at the commercial scale.
Self-Consumption
Demand Charge
UPS
EPC Projects
C&I Solar Energy Storage — On-Grid, Hybrid & Peak Shaving
The RAKOUR NSTFW-16K-HV is purpose-built for commercial and industrial solar energy storage deployments where high capacity, scalable architecture, and high voltage inverter compatibility are non-negotiable. With each rack delivering 16.08kWh and support for up to 17 battery stacks in parallel — each containing 5 to 14 modules — the system scales to meet large-load demand response, solar self-consumption maximization, and time-of-use peak shaving requirements on a single platform.

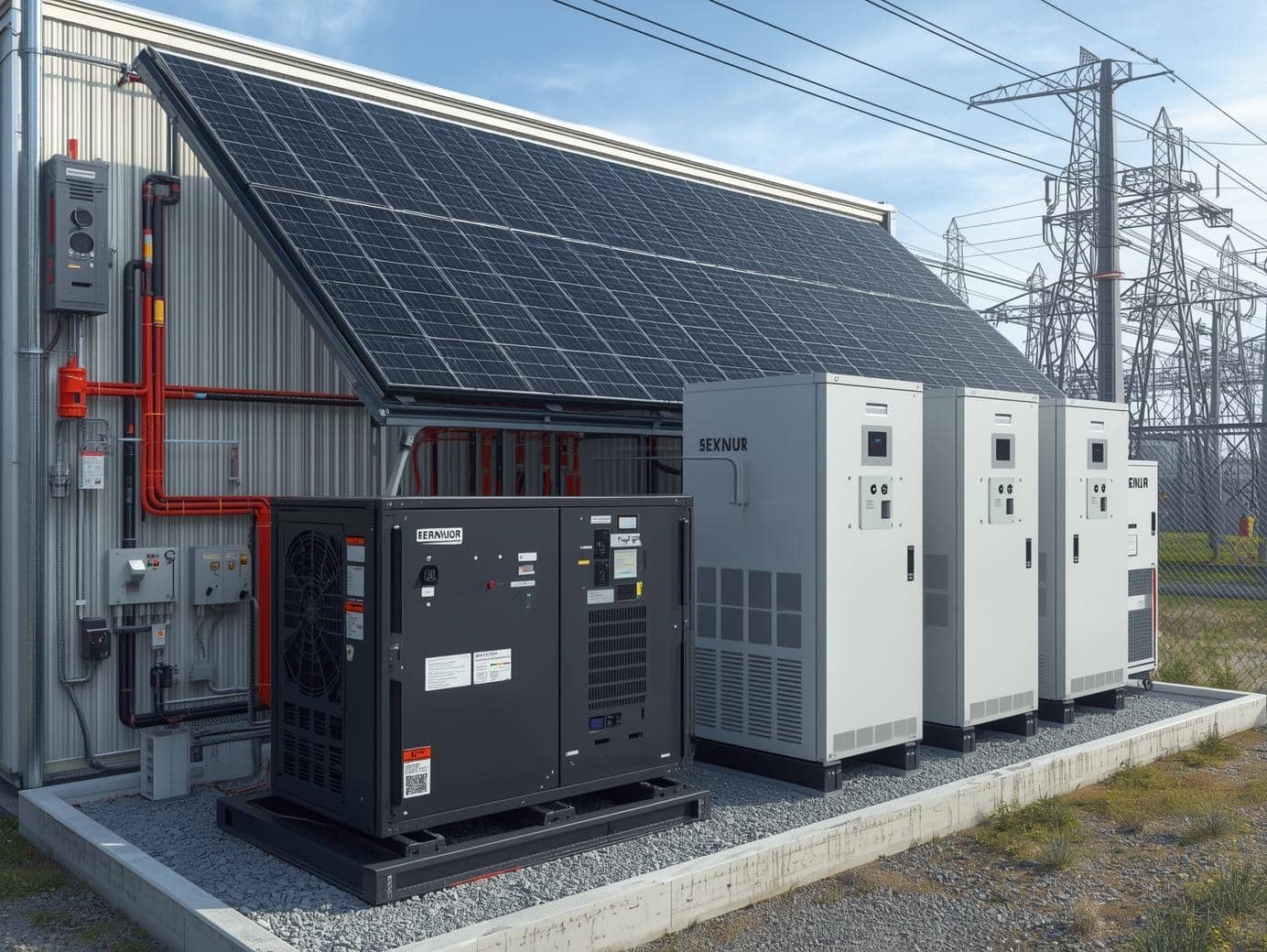

Grid Backup & Multi-Inverter AC Parallel Deployments
The NSTFW-16K-HV energy storage system supports up to 10 inverters in AC parallel operation, making it a viable backbone for microgrid, EPC-designed backup power installations, and multi-building commercial facilities. Its stackable battery architecture enables phased capacity expansion without system redesign — a critical advantage for EPCs and distributors delivering scalable commercial energy storage solutions to end clients.
Server Rack Battery Compatible With Leading High Voltage Inverter Brands
Compatible Inverters
This server rack battery communicates natively with major high voltage inverter brands via RS485 and CAN protocols, enabling plug-and-play commissioning for installers.
Verified DEYE High Voltage Inverter Integration — CAN Protocol
The RAKOUR NSTFW-16K-HV high voltage battery communicates with compatible high voltage inverters via CAN protocol, connecting the BCU's CAN port directly to the inverter's BMS1 port. Dedicated wiring and commissioning guides are available for two factory-verified DEYE configurations: the SUN-29.9K~50K-SG01HP3 and the SUN-80K-SG02HP3-EU-EM6. For DEYE 80kW series, parallel shunt wiring across dual BAT interfaces (P1+/P1− → BAT1, P2+/P2− → BAT2) is recommended to maximize discharge current from a single battery energy storage system cluster — reducing total hardware cost per kWh for EPC projects.
| Brand | Inverter Category | Communication |
|---|---|---|
DEYE | SUN-29.9K~50K-SG01HP3 / SUN-80K-SG02HP3-EU-EM6 |
CAN |
Growatt | High Voltage Series |
CAN
RS485 |
Sofar | High Voltage Series |
CAN
RS485 |
Goodwe | High Voltage Series |
CAN
RS485 |
Solis | High Voltage Series |
CAN
RS485 |
Afore | High Voltage Series |
CAN
RS485 |
ATESS | High Voltage Series |
CAN
RS485 |
Megarevo | High Voltage Series |
CAN
RS485 |
LuxPowerTek | High Voltage Series |
CAN
RS485 |
Koyoe | High Voltage Series |
CAN
RS485 |
Certified High Voltage Battery Meeting Global Safety & Shipping Standards
Certifications & Compliance
Every battery unit is manufactured under ISO 9001-certified quality controls and independently tested to ensure your projects meet regulatory and insurance requirements in key markets worldwide.
RAKOUR NSTFW-16K-HV — Third-Party Verified Compliance for C&I Deployments
For solar installers, EPCs, and battery distributors operating across international markets, the RAKOUR NSTFW-16K-HV high voltage battery ships with a complete, independently verified certification package. Every 51.2V 314Ah battery module is tested and certified under third-party laboratory conditions — ensuring your commercial energy storage projects meet regulatory, insurance, and logistics compliance requirements without qualification delays.
UN38.3 — Transport Safety Validated Across All Hazard Test Categories
The NSTFW-16K-HV LiFePO4 cells and assembled battery module have been independently tested to UN38.3 (8th Edition) — covering altitude simulation, thermal stress, vibration, mechanical shock, external short circuit, crush, overcharge, and forced discharge. All test results passed with no fire, no explosion, no leakage, and no rupture. UN number: UN 3480 / UN 3481, Transport Hazard Class 9.
Private Label & OEM Battery Energy Storage System Manufacturing
OEM & ODM Support
We support distributors and EPCs with full OEM and ODM customization including private label branding, custom BMS firmware, packaging design, and white-label documentation for your end-market.
Factory-Direct OEM from Xiamen — High Voltage & Low Voltage Battery Platforms
RAKOUR operates as a Xiamen-based OEM manufacturer with a fully documented product platform spanning both high voltage and low voltage LiFePO4 battery energy storage systems. The NSTFW-16K-HV is one of multiple production-ready battery module configurations — alongside 51.2V 100Ah, 200Ah, and 280Ah HV variants — giving distributors and EPCs a verified, scalable product portfolio to white-label under a single factory partnership.
Confirmed OEM & ODM Capabilities
All RAKOUR 51.2V stackable battery products — including the NSTFW-16K-HV — are available with OEM and ODM support, directly confirmed in official product documentation. This covers both the high voltage rackable series and the LV wall-mounted and rackable form factors, providing distributors with a complete private-label commercial energy storage lineup from a single certified source.
RAKOUR NSTFW-16K-HV High Voltage Battery for C&I Solar Projects
Frequently Asked Questions
What is the maximum scalable capacity of the RAKOUR NSTFW-16K-HV high voltage battery energy storage system?
How does the LiFePO4 battery management system work in the NSTFW-16K-HV?
Which high voltage inverters are compatible with the RAKOUR 51.2V 314Ah stackable battery system?
What is the rated cycle life and warranty of the NSTFW-16K-HV LiFePO4 battery module?
What certifications does the RAKOUR NSTFW-16K-HV carry for international shipping and market compliance?
