Grade-A LiFePO4 Cells · Built-in Smart BMS · IEC62619 Certified · OEM/ODM Ready

51.2V 200Ah Lithium Iron Phosphate Battery | 10.2kWh HV Rack-Mounted Energy Storage

Designed for residential and light commercial solar storage installations, the 51.2V 200Ah LiFePO4 battery delivers 10.24kWh of reliable, rack-mounted energy storage in a compact 605×383×240mm form factor.

Download Datasheet

Contact OEM Team

Request a Quote

Home » Products » High Voltage Batteries » HV 51.2V 200Ah Lithium Iron Phosphate Battery

10.2kWh Battery Energy Storage System Built for Residential Solar

Product Overview

A scalable, rack-mounted battery energy storage system engineered for reliable daily solar cycling at home.

What Makes This Module Stand Out

10.24kWh total energy — 9.21kWh usable at 90% DOD
Rack-mounted design fits standard 19" server cabinets
Touch color screen with real-time SOC, voltage & temperature display
Up to 15 units in parallel — expand to 153.6kWh from a single system
Wide operating range: -20°C ~ 60°C discharge / 0°C ~ 60°C charge

Why Solar Installers Choose This LiFePO4 Battery for Solar Battery Storage Projects

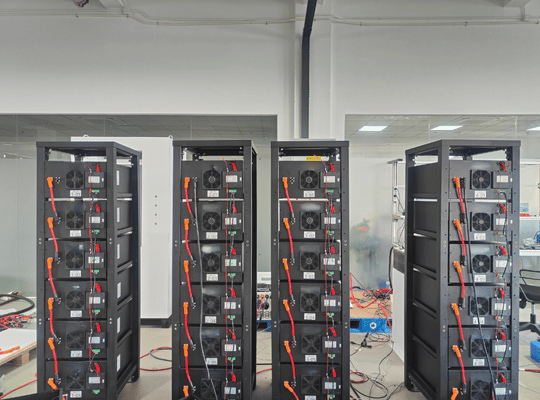

Key Features

Purpose-built for solar battery storage, every feature is optimized for fast installation, safe operation, and long service life.

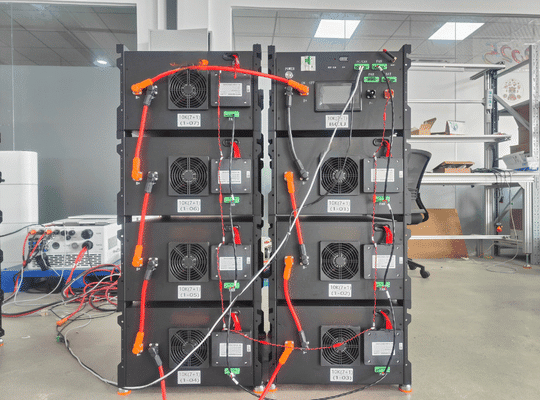

Smart Battery Management System (BMS)

Built-in BMS monitors cell voltage, current, and temperature in real time. Multi-layer protection covers over-charge, over-discharge, over-current, and high/low temperature faults. The BMS communicates with inverters via CAN or RS485, enabling dynamic charge/discharge control for maximum efficiency.

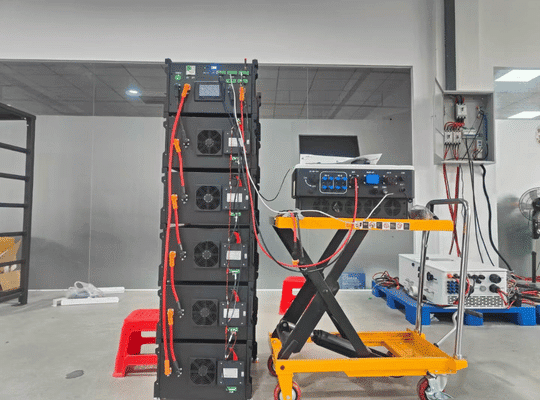

Grade-A LiFePO4 Cells — Superior Safety & Longevity

The module uses prismatic Grade-A LiFePO4 cells with a proven ≥6,000 cycle life at 90% DOD — equivalent to over 16 years at one cycle per day. Lithium iron phosphate chemistry is inherently thermally stable, eliminating the thermal runaway risk associated with NMC chemistries.

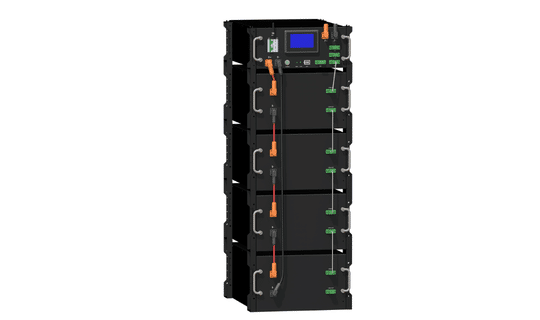

Flexible Parallel Expansion

Up to 15 units can be connected in parallel via the RS485-2 daisy-chain port. Dial-switch addressing makes multi-unit commissioning fast and error-free — no laptop or configuration software required on-site.

Touch Screen & Status Indicators

The front panel features a color touch display plus three LED indicators (power, normal operation, alarm). Installers can switch communication protocols on-screen to match the connected inverter brand without rewiring.

Full Technical Specifications — 51.2V 200Ah LiFePO4 Lithium Battery

Technical Specifications

All electrical and mechanical parameters verified by third-party testing labs to meet global certification standards.

51.2V 200Ah-HV · Technical Specifications

Rakour Energy Technology · Model: 51.2V200Ah-HV (Battery Module)

⚡ 10.24 kWh / Module 🔋 LiFePO₄ 🏗 High Voltage Stack 📶 WIFI + CAN + RS485

⚠️ This is a high-voltage stackable system. System voltage ranges from 185.6V to 980V depending on the number of modules (4–10 units). Specs below are per battery module unless noted.

🔋 Electrical

📐 Mechanical

🔌 Communication

🌡 Temperature

Parameter	Value
⚡ Module Nominal Voltage	51.2 V
🔋 Module Nominal Capacity	200 Ah
💡 Module Energy	10,240 Wh 10.24 kWh
🏗 System Voltage Range (BCU)	185.6 V ~ 980 V 4–10 modules
⚡ Max Charge / Discharge Current	Recommend 80A · Max 100A
💪 Max Power (BCU)	5,120W × module qty
❄️ Cooling Mode	Natural Cooling Fan on high temp
🔬 Cell Chemistry	LiFePO₄
🔄 Cycle Life	≥ 6,000 cycles ~16 yrs
🛠 Warranty	5 Years
📜 Certifications	CE · MSDS · UN38.3

Parameter	Value
📏 Module Dimensions (W×D×H)	383 × 605 × 240 mm
⚖️ Module Weight	77 kg
🗄 Cabinet Size — Single (W×D×H)	436 × 575 × 1,820 mm
🗄 Cabinet Size — Double (W×D×H)	872 × 575 × 1,820 mm
⚖️ Iron Frame Weight	64 kg / frame
🛡 Protection Level	IP20
🔗 Max Parallel Sets	4 sets up to 409.6 kWh
🏔 Working Altitude	≤ 2,000 m
💧 Working Humidity	≤ 85% RH
🏗 Installation Type	Stack Mounting · Iron Frame Mounting

Interface	Protocol	Function
📡 CAN Port (RJ45)	CAN Bus	Inverter BMS communication
🔗 RS485 Port (RJ45)	RS485	Inverter / inter-module communication
📶 WIFI Module (Built-in)	WIFI HV Exclusive	Remote monitoring via mobile app
🔌 Internal CAN (BCU ↔ Module)	CAN Bus	Cell voltage & temp data to BCU

Condition	Range
🔆 Discharge Operating	-20°C ~ 60°C Widest range
⚡ Charge Operating	0°C ~ 60°C
📦 Storage (12 months)	≤ 25°C
📦 Storage (6 months)	≤ 35°C
📦 Storage (3 months)	≤ 45°C

Ideal Solar Battery Storage Applications for Installers & EPCs

Applications

Versatile enough for residential rooftops to light commercial sites — wherever low-voltage solar storage is needed.

Rakour 51.2V 200Ah-HV lithium iron phosphate battery paired with rooftop solar panels for residential self-consumption and time-of-use solar battery storage

Residential Self-Consumption & Time-of-Use Optimization

Store excess solar generation during the day and discharge during peak tariff hours. The 10.2kWh capacity covers average household overnight consumption, delivering measurable bill savings from day one.

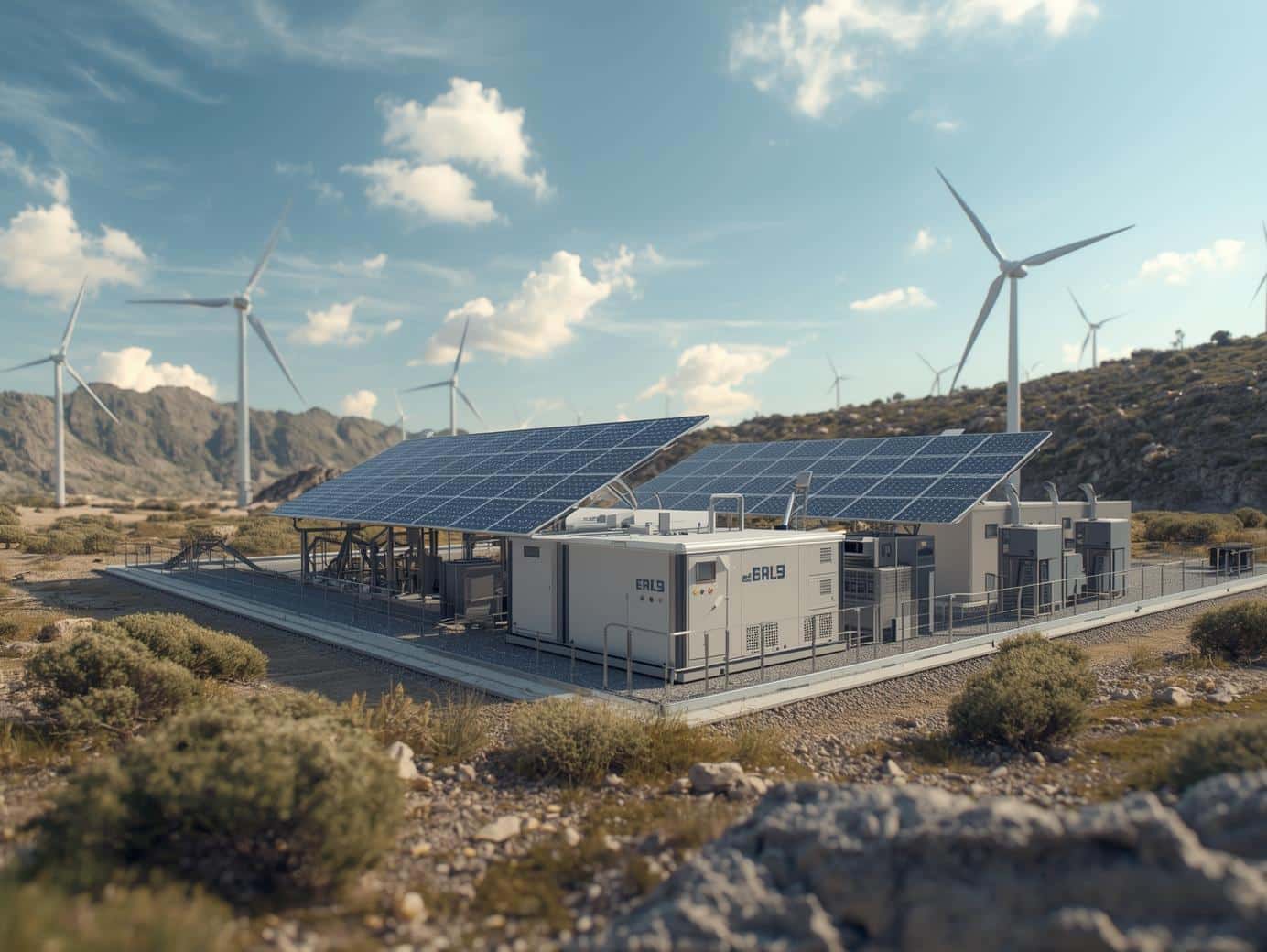

Rakour 51.2V 200Ah-HV LiFePO4 battery off-grid solar storage system powering rural residential property with high voltage battery pack and solar inverter

Off-Grid & Hybrid Solar Systems

Paired with a hybrid inverter, the 51.2V 200Ah module provides backup power during grid outages. Parallel expansion to 15 units gives off-grid homesteads and rural properties up to 153.6kWh of autonomous storage capacity.

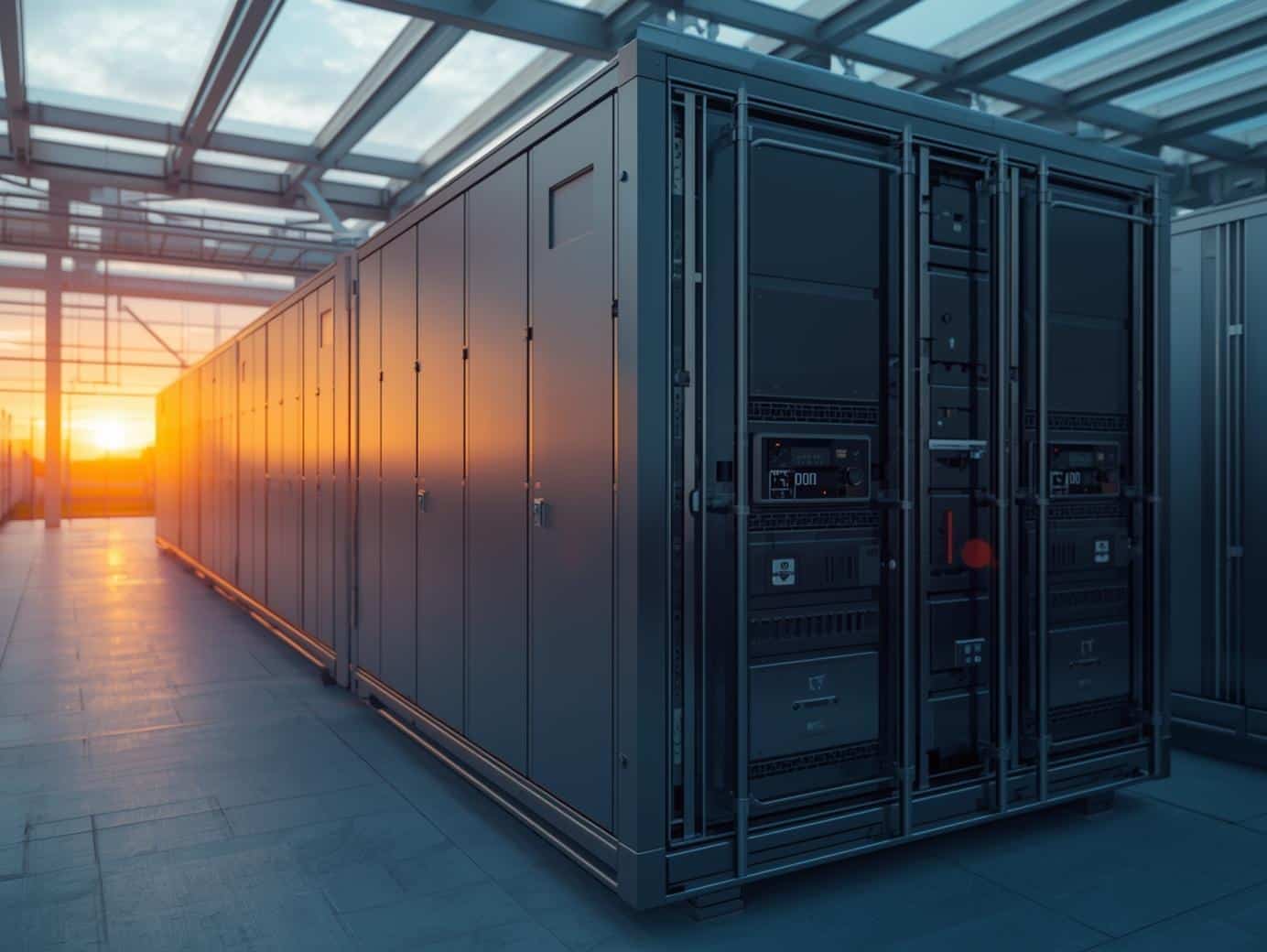

Rakour 51.2V 200Ah-HV high voltage battery energy storage system installed for a retail store commercial solar battery storage project to reduce demand charges

Light C&I Energy Storage

Small commercial users — retail stores, clinics, small offices — can deploy multiple modules in a standard rack to meet demand charge reduction targets and comply with local grid export regulations.

EPC engineers and solar installers performing batch installation of Rakour 51.2V 200Ah-HV LiFePO4 battery modules for a large-scale residential solar battery storage project

EPC & Installer Project Builds

The modular rack design, tool-free parallel connection, and on-screen protocol switching make this battery the preferred choice for EPCs managing high-volume residential solar-plus-storage rollouts.

Broad Solar Inverter Compatibility via CAN & RS485 Communication

Compatible Inverters

Pre-configured communication profiles ensure plug-and-play integration with leading inverter brands worldwide.

Verified Compatible Inverter Brands

Compatible Inverter List — 51.2V 200Ah-HV

Rakour Energy Technology · Verified via BCU CAN Communication

📡 CAN Bus Protocol 🔌 BCU CAN → Inverter BMS1 ⚡ HV System 185.6V ~ 980V 🔧 Soft-Start Built-in

1 Brand

Verified in Manual

2 Models

DEYE SUN Series

⚠️ Only DEYE is explicitly documented in the 51.2V 200Ah-HV product manual. Other HV inverter brands compatible via CAN/RS485 should be verified separately before deployment.

🔧 Standard Wiring Procedure (Applies to All Listed Inverters)

Set Battery Mode In inverter setup menu, set Batt Mode to Lithium. Enable "Parallel bat1&bat2" option.

Connect Power Cables BCU P1+/P1− → Inverter BAT1 port. BCU P2+/P2− → Inverter BAT2 port (parallel shunt method).

Connect Communication BCU CAN port → Inverter BMS1 port using the supplied communication cable.

⚡ Verified Compatible Inverters

Brand	Verified Model(s)	Protocol	Connection Port	Installation Notes	Status
☀️ DEYE Shandong Deye Tech	SUN-29.9K-SG01HP3 SUN-30K-SG01HP3 SUN-35K-SG01HP3 SUN-40K-SG01HP3 SUN-50K-SG01HP3	📡 CAN Bus	🔌 BCU CAN → BMS1	Each battery set is limited to max 50A input/output. For modules ≥10kWh, max discharge ≥100A is supported. Parallel shunt wiring recommended to increase power and reduce cost — connect one battery set to both BAT1 and BAT2 interfaces simultaneously.	Verified
☀️ DEYE Shandong Deye Tech	SUN-80K-SG02HP3-EU-EM6	📡 CAN Bus	🔌 BCU CAN → BMS1	80KW series supports two battery sets; each set limited to max 50A. For modules ≥10kWh, max discharge ≥100A. Parallel shunt wiring recommended: connect P1+/P1− to BAT1 and P2+/P2− to BAT2 to maximise output power and reduce BESS cost.	Verified

How to Select the Right Protocol

Connect the host battery's CAN or RS485-1 port to the inverter's BMS communication port. Set the BMS host address to 1 via the front panel dial-switch. Slave batteries (addresses 2–15) are chained via RS485-2. Protocol selection (CAN vs. RS485) is configurable directly from the touch screen — no laptop needed.

View Our Compatibility List

IEC62619 Certified Battery Manufacturer — Globally Compliant

Certifications & Compliance

Every unit ships with full third-party certification documentation — ready for grid connection approvals worldwide.

Certification Summary

Rakour Energy Technology · Model: 51.2V 200Ah-HV · Third-Party Verified

Certifications

Testing Labs

✓

All Passed

📦 Certified Product: 51.2V 200Ah-HV Lithium-ion Battery Pack 10,240 Wh 16S1P · LiFePO₄ Manufacturer: Rakour Energy Technology Co., Ltd. · Xiamen, Fujian, China

Certificate	Standard / Directive	Report No.	Testing Laboratory	Issue Date	Scope	Result
🇪🇺 CE — EMC CE Declaration of Conformity	EN IEC 61000-6-1:2019 EN IEC 61000-6-3:2021 EMC Directive 2014/30/EU	FCS202406109CA01M1	Dongguan Funas Testing Technology Co., Ltd. 📍 Dongguan, Guangdong, China	📅 Jul 16, 2024	EU market electromagnetic compatibility	PASS
🚢 UN38.3 Transport Safety — By Sea / Air / Road	UN Manual of Tests ST/SG/AC.10/11/Rev.8 §38.3	TSZ24HL025A02-02	Shenzhen Tiansu Calibration and Testing Co., Ltd. 📍 Longgang District, Shenzhen, China	📅 2024	Safe transport: altitude, thermal, vibration, shock, external short, overcharge, forced discharge — all PASS	PASS
🧪 MSDS Material Safety Data Sheet	GHS — Globally Harmonized System	TSZ24MA008A04-01	Shenzhen Tiansu Calibration and Testing Co., Ltd. 📍 Longgang District, Shenzhen, China	📅 Dec 18, 2024	Chemical composition, safe handling, emergency response · Valid until Dec 31, 2025	ISSUED

Why Certification Matters for Your Projects

IEC62619 certification is increasingly mandated by grid operators, insurers, and building codes in Europe, Australia, and Southeast Asia. Stocking a fully certified module protects your installation business from liability and accelerates permitting approval on every project.

Private Label Battery Manufacturers — OEM & ODM Solutions Available

OEM & ODM Support

As a factory-direct OEM battery manufacturer, we offer full private label and custom specification support.

What Our OEM Program Includes

🏷️

Private Label Branding MOQ 50 units

Custom logo, colour scheme, and retail packaging applied directly at the factory. Your brand on every unit — from the enclosure silkscreen to the outer carton. Minimum order of 50 units per SKU.

🔋

Custom Capacity Configurations 4 options

Available across the full HV rackable lineup: 100Ah 200Ah 280Ah 314Ah — select the capacity that fits your target market segment and system design requirement.

💾

BMS Firmware Customization CAN · RS485 · WIFI

BMS communication profiles pre-configured for your target inverter brand before shipment. Supports CAN, RS485, and WIFI protocols. Eliminates on-site setup time and reduces installer error — your customers get a plug-and-play experience out of the box.

📄

OEM Documentation Pack Co-branded

Full suite of co-branded documents shipped with every order: user manuals, CE declarations of conformity, MSDS safety sheets, UN38.3 transport certificates, and product datasheets — all bearing your brand identity and ready for local regulatory submission.

🚢

Low MOQ & Flexible Shipping UN38.3 Certified

Sea freight and air freight both supported. Units are UN38.3 by Sea certified and air-eligible, ensuring smooth customs clearance to Europe, Australia, the Middle East, and Southeast Asia. Low minimum order quantities allow distributors to trial new SKUs without large upfront commitments.

Who We Work With

We serve solar distributors, EPC contractors, system integrators, and branded storage product companies across Europe, Australia, the Middle East, and Southeast Asia. Our factory in Xiamen, Fujian holds ISO production management standards and ships globally.

Frequently Asked Questions About Our 51.2V LiFePO4 Lithium Battery

Everything solar installers and distributors need to know before specifying or stocking this product.

How many batteries can be connected in parallel?

Up to 15 units can be connected in parallel using the RS485-2 daisy-chain port, expanding total system capacity from 10.24kWh to a maximum of 153.6kWh. The host battery address is set to 1; slave units are addressed 2 through 15 via the front panel dial-switch.

Which inverter communication protocol should I use — CAN or RS485?

Both protocols are supported via the RS485-1/CAN combo port (RJ45). The preferred protocol depends on your inverter brand. For DEYE, CAN is recommended. Protocol selection is switchable directly on the battery's touch screen, so no rewiring is needed if you change inverter brands.

Is this battery IEC62619 certified?

Yes. The 51.2V 200Ah-HV model holds a valid IEC62619 safety certification issued by a third-party laboratory. CE, RoHS, MSDS, and UN38.3 (by sea) certificates are also included and available for download or provided with each shipment.

What is the expected cycle life of this LiFePO4 battery?

The battery is rated for ≥6,000 full charge-discharge cycles at 90% depth of discharge. Cycling once per day, this equates to over 16 years of service life — significantly longer than equivalent NMC-based battery systems.

Does this battery support OEM private label?

Yes. We are a factory-direct OEM battery manufacturer offering private label branding, firmware customization, co-branded documentation, and custom capacity configurations. Minimum order quantities start at 50 units. Contact our OEM team for a project quotation.

What is the warranty?

All units carry a 5-year manufacturer's warranty covering defects in materials, workmanship, and BMS firmware. Warranty claims are processed directly with our factory, with replacement units shipped on confirmed fault verification.
