Download LiFePO4 Battery Datasheets — 51.2V Rack & Wall Mount ESS
RAKOUR manufactures certified 51.2V LiFePO4 energy storage batteries for residential, commercial, and industrial applications. Browse and download our full range of technical datasheets — including HV/LV rackable battery systems and wall-mounted ESS units from 100Ah to 314Ah. All products are CE, IEC62619, and UN38.3 certified. OEM and bulk order inquiries welcome.
Download by Product Series
Whether you are sourcing a high voltage ESS for a large-scale installation or a wall mount solar battery for residential use, each datasheet includes full technical specifications in PDF format — ready to download for engineering review, procurement, or compliance verification.
HV Rackable Series｜High Voltage ESS Battery Datasheet
The RAKOUR HV Rackable Series is engineered for high voltage energy storage systems ranging from 115kWh to 244kWh. Download the LiFePO4 rack battery datasheet to access full electrical parameters, BMS specifications, communication protocols (CAN / RS485), and dimensional drawings. Ideal for C&I system integrators and EPC contractors requiring scalable, stackable ESS solutions.
51.2V Module · 100–314Ah · C&I & Grid-Scale ESS · CAN / RS485 / WiFi
| 📦 Model | ⚡ Voltage | 🔋 Capacity | 💡 Energy | 🔄 Cycle Life | 📄 Datasheet |
|---|---|---|---|---|---|
| HV Rackable 100Ah 51.2V100Ah-HV | 51.2 V | 100 Ah | 5.12 kWh | ≥ 6,000 cycles | Download PDF |
| HV Rackable 200Ah 51.2V200Ah-HV | 51.2 V | 200 Ah | 10.24 kWh | ≥ 8,000 cycles | Download PDF |
| HV Rackable 280Ah 51.2V280Ah-HV | 51.2 V | 280 Ah | 14.34 kWh | ≥ 8,000 cycles | Download PDF |
| HV Rackable 314Ah 51.2V314Ah-HV | 51.2 V | 314 Ah | 16.08 kWh | ≥ 10,000 cycles | Download PDF |
LV Rackable Series｜51.2V Battery Specifications PDF
The RAKOUR LV Rackable Series offers flexible low-voltage configurations for residential and light commercial energy storage. Download the 51.2V battery specifications PDF for each model to review cycle life, depth of discharge, parallel expansion limits (up to 15 units), and inverter compatibility. Trusted by solar installers and system integrators worldwide.
51.2V Module · 100–314Ah · Up to 15 Units Parallel · Residential & Light Commercial
| 📦 Model | ⚡ Voltage | 🔋 Capacity | 💡 Energy | 🔄 Cycle Life | 📄 Datasheet |
|---|---|---|---|---|---|
| 🗄️ Rackable Models | |||||
| LV Rackable 100Ah 51.2V100Ah-LV | 51.2 V | 100 Ah | 5.12 kWh | ≥ 6,000 cycles |
Download PDF
100 / 200 / 280 / 314Ah |
| LV Rackable 200Ah 51.2V200Ah-LV | 51.2 V | 200 Ah | 10.24 kWh | ≥ 6,000 cycles | |
| LV Rackable 280Ah 51.2V280Ah-LV | 51.2 V | 280 Ah | 14.34 kWh | ≥ 10,000 cycles | |
| LV Rackable 314Ah 51.2V314Ah-LV | 51.2 V | 314 Ah | 16.08 kWh | ≥ 11,000 cycles | |
RESS Series｜RESS Solar Battery Technical Specs
Designed for space-efficient residential and small commercial installations, the RAKOUR Wall Mount & Ground Wheel ESS Series delivers reliable backup power with minimal footprint. Download the solar battery technical specs to confirm dimensions, mounting requirements, charging/discharging temperature ranges, and hybrid inverter compatibility. Available in 10.2kWh, 14.3kWh, and 16kWh configurations.
51.2V · 10.2–16 kWh · IP54 · Residential Solar Storage · CAN / RS485 / RS232
| 📦 Model | ⚡ Voltage | 🔋 Capacity | 💡 Energy | 🔄 Cycle Life | 📄 Datasheet |
|---|---|---|---|---|---|
| Wall Mount 200Ah NSTLV-10.2K · IP54 | 51.2 V | 200 Ah | 10.2 kWh | ≥ 6,000 cycles | Download PDF |
| LV Ground Wheel 280Ah 51.2V280Ah-LV Ground | 51.2 V | 280 Ah | 14.34 kWh | ≥ 10,000 cycles |
Download PDF
280 / 314Ah |
| LV Ground Wheel 314Ah 51.2V314Ah-LV Ground | 51.2 V | 314 Ah | 16.08 kWh | ≥ 11,000 cycles |
Why B2B Buyers Choose RAKOUR LiFePO4 Battery Systems

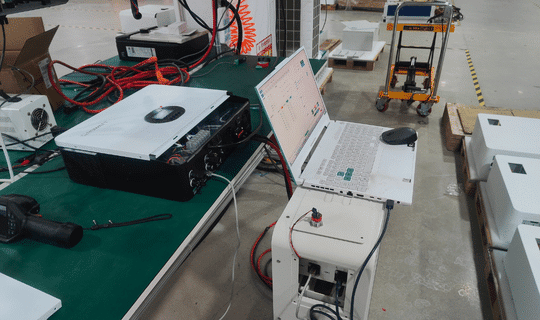

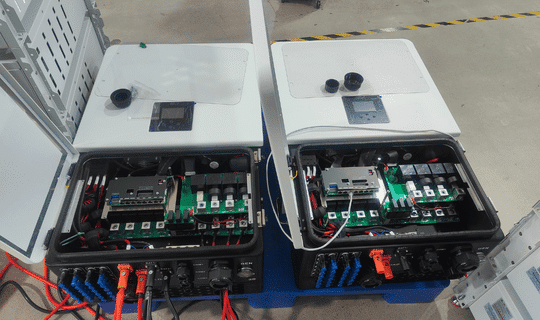

RAKOUR is a China-based LiFePO4 energy storage manufacturer supplying distributors, system integrators, EPC contractors, and OEM partners across Europe, North America, Australia, and Southeast Asia. Our 51.2V battery systems are engineered for real-world ESS deployment — with proven compatibility across major inverter brands including Deye, Growatt, Victron, GoodWe, and SMA.
Frequently Asked Questions About Our Battery Datasheets
Find answers to the most common questions from B2B buyers, engineers, and procurement teams reviewing our LiFePO4 battery technical specifications.
What is included in the LiFePO4 rack battery datasheet?
Are the 51.2V battery specifications suitable for my inverter?
Can I request a custom ESS datasheet for OEM orders?
What certifications do RAKOUR batteries carry?
Is the wall mount solar battery suitable for outdoor installation?
OEM & Bulk Order
Request a Custom LiFePO4 Energy Storage Battery Datasheet
Can't find the configuration you need? RAKOUR supports full OEM and ODM customization — including capacity, voltage, BMS parameters, enclosure design, and private labeling. Submit your project requirements and our engineering team will provide a custom LiFePO4 energy storage battery datasheet, technical proposal, and FOB price within 24–48 hours. Ideal for distributors and importers sourcing factory-direct ESS solutions at scale.
